The electric guitar’s voice comes down to a handful of magnets and wire hidden under its strings. A pickup translates those vibrating steel strings into electricity that your amp can blast into sound. Mess with the parts inside and you change everything from output to tone to how the instrument feels under your fingers.
Understanding what each component actually does helps you choose the right pickup, diagnose problems, and even modify your own guitar without guesswork.
Plenty of players treat pickups like mysterious black boxes. They swap them hoping for magic without knowing why one sounds fat and another sounds thin. The truth is simpler and more interesting than marketing copy suggests.
Every pickup is a small electromagnetic generator built from the same core ingredients working together. Once you see how those pieces fit, you start hearing differences before you even plug in.

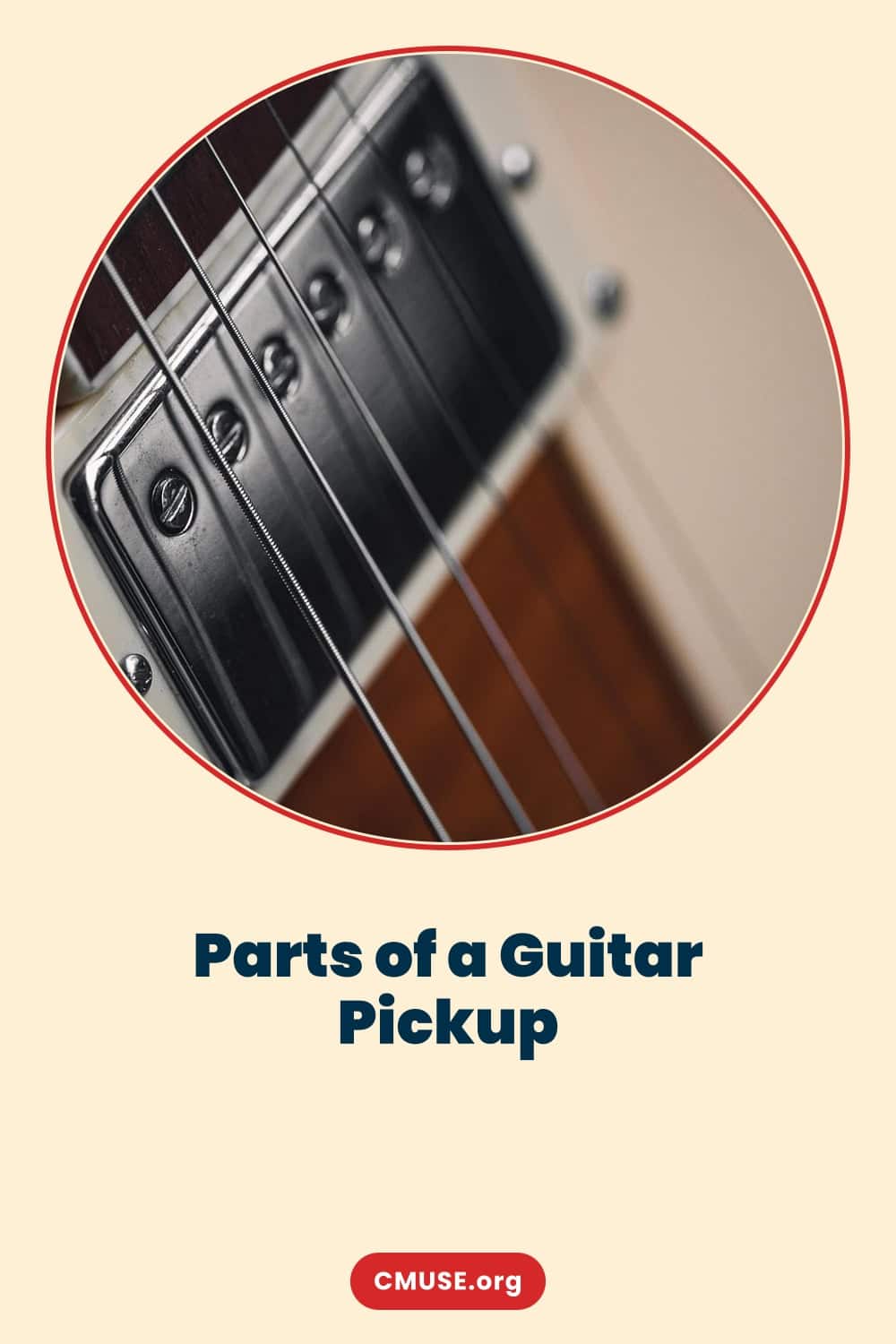

The Main Parts of a Guitar Pickup
1. Magnets
The magnet sits at the heart of the operation. It creates the steady magnetic field that the strings disturb when they move. Most guitar magnets are either alnico, an alloy of aluminum, nickel, and cobalt, or ceramic, a cheaper and stronger ferrite material.
Alnico magnets tend to compress and saturate in a musically pleasing way, which is why they dominate vintage-style pickups. Ceramic magnets push harder and stay cleaner at high volumes, which explains their popularity in metal. Swap the magnet type or its strength and you immediately change the pickup’s output, clarity, and how it responds to your playing dynamics.
That single choice sets the foundation for everything else.
2. The Coil
The coil comes next and does the actual work of turning motion into signal. Hundreds or thousands of turns of insulated copper wire wrap around the magnet or magnets. More turns usually mean higher output and a darker tone because the increased resistance rolls off high frequencies.
Fewer turns keep things bright and touch-sensitive but can sound weak through a clean amp. The gauge of the wire matters too. Thinner 42- or 43-gauge wire, common in classic single-coils, gives a snappy, articulate sound.
Heavier 41-gauge wire, often found in humbuckers, delivers thicker mids and more sustain. Hand-wound coils sound different from machine-wound ones because the slight inconsistencies in tension and layering create subtle variations in inductance. Those microscopic differences are exactly why two pickups of the same model can feel unique.
3. The Bobbin
The bobbin holds everything in place and keeps the coil from unraveling. Early Fender bobbins were molded from vulcanized fiberboard, a material still prized for its slight give and authentic vintage look. Modern bobbins are usually injection-molded plastic that offers tighter tolerances and lower cost.
The bobbin’s shape determines how the coil sits relative to the strings and therefore affects the magnetic window each string sits in. A narrow bobbin concentrates the field for a more focused sound while a wider one captures a broader harmonic spread. Cheap bobbins can warp over time, especially under the heat of wax potting, which slowly loosens the coil and introduces microphonic squeal.
That’s the part most players never consider until their pickup starts feeding back at the wrong moment.
4. Pole Pieces
Pole pieces channel and focus the magnetic field directly under each string. In a standard single-coil they are usually cylindrical steel slugs that double as the core the wire wraps around. In many humbuckers they are threaded steel screws that let you raise or lower the response of individual strings.
The material of the pole piece matters. Steel concentrates the field strongly while brass or nickel-silver alloys soften it for a smoother attack. Some boutique pickups use brass pole pieces specifically to tame harsh highs on the wound strings.
Adjusting pole-piece height is one of the fastest ways to balance a guitar’s output across the neck. Bring a pole too close to the string and you get a loud, thin sound plus magnetic pull that can kill sustain. Keep them too low and the signal gets weak and unfocused.
The sweet spot is smaller than most players realize.
5. The Cover
The cover protects the delicate coil from dust, sweat, and stray screwdriver slips while also influencing the tone in subtle but real ways. Nickel-silver covers, common on humbuckers, add a slight low-pass filter effect that rounds off the highest frequencies. Chrome or gold plating changes the eddy currents and can brighten the sound slightly compared to raw nickel.
Some players remove the cover entirely to chase an airier, more open tone, though they risk exposing the coil to damage. Plastic covers on single-coils are mostly protective but can still color the sound depending on their thickness and how tightly they fit. A loose cover can rattle against the coil and introduce unwanted noise, which is why serious builders glue or screw them down securely.
6. Lead Wires
Lead wires carry the signal out of the pickup and into your guitar’s wiring harness. The gauge, insulation type, and length all affect capacitance and therefore high-end roll-off. Vintage cloth-covered wire adds a bit of natural capacitance that many players associate with classic warmth.
Modern shielded wire keeps noise down but can sound tighter and more sterile to ears tuned to older guitars. The way the wires are dressed inside the pickup cavity matters too. Crossing the hot and ground leads at right angles reduces hum while running them parallel invites it.
A sloppy solder joint or frayed insulation at the base of the pickup is responsible for more crackling volume pots than most guitarists want to admit.
7. Wax Potting Compound
The wax potting compound locks the coil windings in place so they do not vibrate and create microphonic feedback. paraffin wax mixed with a small amount of beeswax was the original recipe and still sounds familiar to many players. Modern epoxy potting is far more effective at killing feedback but can deaden some of the lively transient response that makes a pickup exciting. Some builders use a light hand with wax so the pickup stays a little microphonic, giving it that explosive edge heard on certain classic recordings.
Too much potting and the pickup loses its soul. Too little and it howls uncontrollably when you turn up the gain. Finding the right balance is part science, part art, and entirely responsible for why some pickups feel alive while others feel stiff.
8. The Baseplate
The baseplate, found on many single-coils, anchors the entire assembly to the guitar body and completes the magnetic circuit. Early ones were made of tin-plated steel that actually becomes part of the magnetic field. Later versions switched to fiberboard or plastic to reduce eddy currents and preserve high frequencies.
A steel baseplate gives a bolder, thicker tone with stronger bass while a non-magnetic one sounds clearer and more hi-fi. Some pickups omit the baseplate entirely, relying on the pickup ring or direct mounting screws. Each choice shifts the resonant peak of the pickup by a noticeable amount, which is why swapping from a steel-backed single-coil to a fiber one can make a Strat sound surprisingly different without touching any other part.
Every one of these components works in concert with the others. Change the magnet and you alter how strongly the coil reacts. Alter the number of wire turns and you change both output and frequency response.
Adjust the pole pieces and you balance the instrument itself. The best pickup builders treat these parts like ingredients in a recipe, adjusting each one with intention rather than simply copying old specifications. Once you understand the function and personality of each piece, you stop buying pickups based on hype and start choosing them based on how they will behave in your hands, through your amp, in the music you actually play.
That knowledge turns a mysterious black box into a tool you can shape. The next time you lean over your workbench or stand in a music store, you will hear the parts talking to each other before you even hear them through a speaker. And that changes everything.
