Calculate the -3 dB high-pass corner formed by a series coupling capacitor, the driving source resistance, and the receiving stage load in guitar amps, pedals, synths, and studio line circuits.

🎛 Stage Presets
🔌 Coupling Network Inputs
Series capacitor between stages.
Plate resistance, pedal output impedance, or line driver resistance.
The main resistance to ground after the capacitor.
Use 0 when there is no added tone, bias, or input network path.
Try 41.2 Hz for low E bass, 82.4 Hz for guitar low E.
The calculator estimates the capacitor needed for this corner.
A 20% part may behave like 80% of marked capacitance.
Used only to name the calculation in the breakdown.

Coupling Capacitor Results

-3 dB Cutoff
0 Hz
fc = 1 / (2πRC)
Loss at Check Frequency
0 dB
relative to high-frequency gain
RC Time Constant
0 ms
one tau of settling
Cap for Target Cutoff
0 nF
using the same resistance network
📊 Amp Stage Comparison Grid
22 nF
Typical guitar tube plate coupler into 1M, about 7 Hz plus source R
2.2 nF
Bright-channel bass trim into 1M, about 72 Hz plus source R
100 nF
Bass amp or full-range tube coupling, about 1.6 Hz into 1M
1 uF
Pedal or op-amp output into 100k, about 1.6 Hz
4.7 uF
Line output into 47k, about 0.72 Hz with low source R
10 uF
Low-impedance solid-state coupling into 10k, about 1.6 Hz
470 kΩ
Common tube grid leak halves the resistance of a 1M design
47 kΩ
Typical line input needs much more capacitance than a tube grid

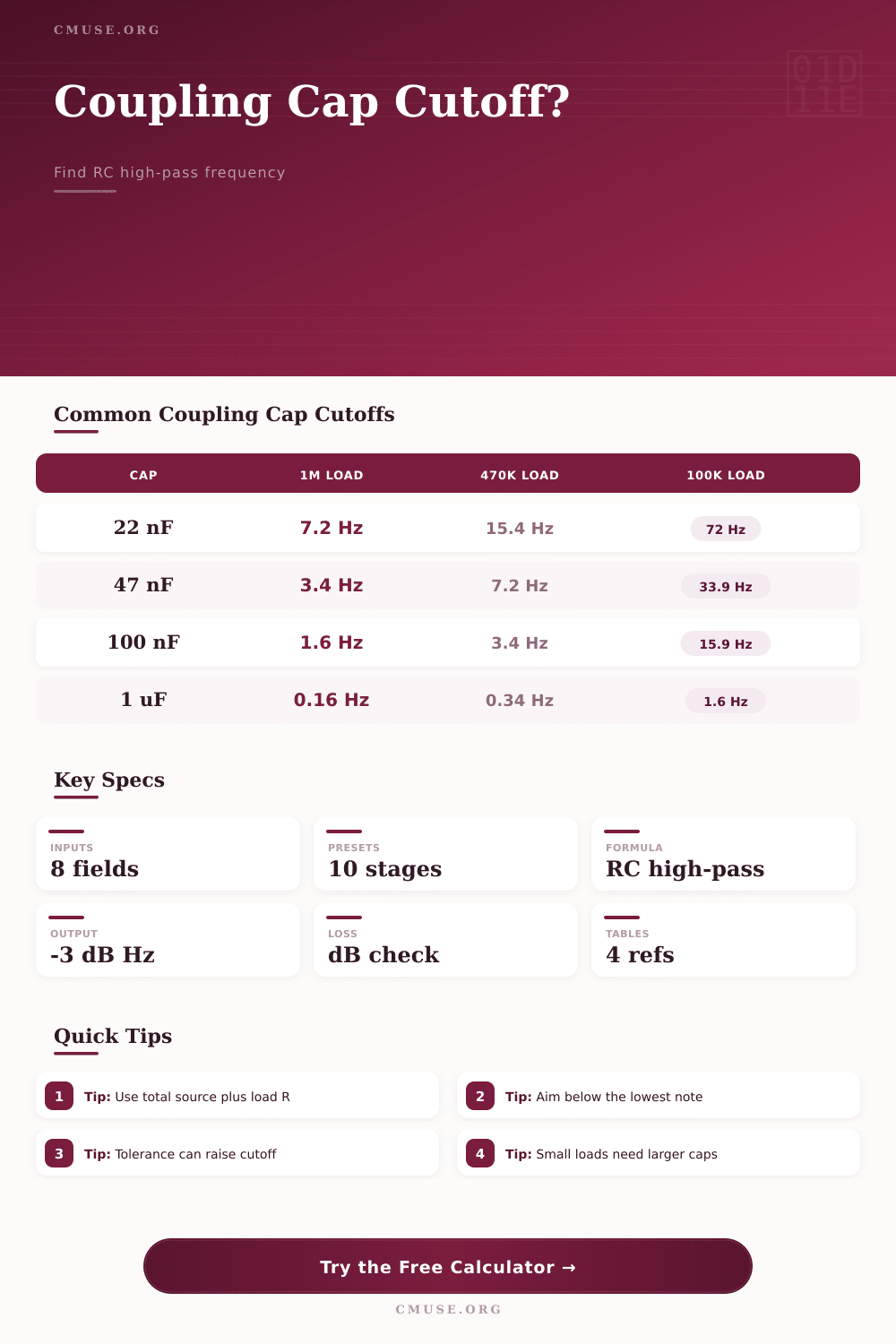

📐 Reference Cutoff Table: Popular Coupling Values
Capacitor 1M Load 470k Load 220k Load 100k Load 47k Load
2.2 nF72.3 Hz153.9 Hz328.8 Hz723.4 Hz1539 Hz
4.7 nF33.9 Hz72.0 Hz153.9 Hz338.6 Hz720.0 Hz
10 nF15.9 Hz33.9 Hz72.3 Hz159.2 Hz338.6 Hz
22 nF7.2 Hz15.4 Hz32.9 Hz72.3 Hz153.9 Hz
47 nF3.4 Hz7.2 Hz15.4 Hz33.9 Hz72.0 Hz
100 nF1.6 Hz3.4 Hz7.2 Hz15.9 Hz33.9 Hz
🎶 Musical Low-Frequency Targets
Signal Range Lowest Note Frequency Practical Cutoff Aim Reason
Standard guitarE282.4 Hz8 to 20 HzFull fundamentals with tight sub-bass
Drop-tuned guitarC265.4 Hz6 to 15 HzKeeps low chords from thinning early
Four-string bassE141.2 Hz4 to 10 HzPreserves bass fundamental energy
Five-string bassB030.9 Hz3 to 8 HzAvoids audible rolloff on the low B
Line-level full range20 Hz20.0 Hz2 to 5 HzMinimizes low-band phase shift
🔎 Input Resistance Reference
Receiving Stage Typical Resistance Cap Often Seen Approx Cutoff Design Note
Tube grid leak1M22 nF7.2 HzClassic guitar preamp coupling
Tube grid leak470k22 nF15.4 HzCommon after mixing or attenuation
Master volume input250k22 nF28.9 HzCan trim low end before overdrive
Pedal or amp input1M100 nF1.6 HzNearly flat for instrument bandwidth
Studio line input47k4.7 uF0.72 HzElectrolytic values are common here
Low-Z processor input10k10 uF1.6 HzLarge cap needed because load is small
🧪 Capacitor Type and Tolerance Reference
Cap Type Common Range Typical Tolerance Audio Coupling Use Cutoff Impact
Film polyester1 nF to 1 uF5% to 10%Tube and pedal signal couplingStable marked value
Film polypropylene1 nF to 470 nF2% to 10%Precision line or hi-fi couplingVery predictable cutoff
Ceramic C0G10 pF to 10 nF1% to 5%Small bright caps and filtersGood for small high-pass caps
Electrolytic1 uF to 100 uF20% typicalLow-impedance line and op-amp stagesLow-side tolerance raises fc
Bipolar electrolytic1 uF to 47 uF10% to 20%Speaker-level or uncertain polarity pathsCheck worst-case capacitance
💡 Coupling Capacitor Tips
Use the resistance the capacitor really sees. For a series coupling capacitor, the -3 dB corner is set by the capacitance and the sum of the driving source resistance plus the effective receiving load. If a tone network, bias resistor, or pot sits in parallel with the input resistance, calculate that parallel load first.
Design below the music, not at the note. A cutoff equal to the lowest note is already 3 dB down at that note. Many audio stages aim several times lower than the lowest useful frequency so the passband stays flat and low-frequency phase shift is reduced.

You spend hours tinkering with pedals and adjusting a tube’s bias looking for that magic sound in the low end but never quite getting there. Often times, the problem is right there on the schematic. It’s called the coupling capacitor.

Coupling capacitors blocks DC voltage but let an audio signal (AC) pass from one amplifier stage to another. At the same time they function as a high-pass filter. If you don’t select the correct value, bass frequencies is rolled off prior to reaching the next amplifier stage.

How to Choose the Right Coupling Capacitor

The mathematics of this relationship are simple enough that any builder can confirm for themself. But many builders do not consider what the true resistance is being seen by capacitor and therefore still get it wrong. So how does it work? It’s all based off one of the most basic relationships in an RC high-pass filter. Take the input impedance of following stage plus the resistance of the drive coming from the preceding stage. This adds up to total resistance in the circuit. When combined with the capacitor value, this total resistance determine the cutoff frequency where the signal drops by three decibels.

Most designers should of aim for a cut-off frequency that is far below the lowest note you plan to play. Your bass guitar has a low-E string of 82 hertz but your -3 dB point is also at 82 hertz. That means you’ve already lost a quarter of your signal at the very fundamental frequency. So bass guitar players require significantly higher values of capacitor than their electric guitar counterparts because they’re battling nature to maintain those lower frequencys intact.

You’ll see the calculator on top of this page asking for both the load and source resistances, and that’s important: higher impedances such as those found at the output of a tube amp can be many megohms. That lets even small caps such as 22 nanofarads through without trouble at low end. However, plug the same signal into an effect pedal whose input impedance might be just 10 kilohms and suddenly the cutoff frequency leap up into the hearing range. Because the heavier load pushes the corner of the high-pass filter upward, it moves into the hearing range and makes your sound thin. To make up for the large load, you need to change out to a much bigger cap. It isn’t simply a matter of the part itself; it’s a matter of its interaction with what follows it.

Electrolytic caps also figure into this quietly due to their use in low impedance circuits where capacitance is critical, but tolerance isn’t necessarily always so. Electrolytic caps has high capacitance in compact packages but frequently with broad tolerances of 20 percent or wider. So if you design your circuit around a precise cut-off frequency but purchase a cap that’s just below its tolerance limit for whatever reason, your effective cap becomes reduced and your carefully designed flat response suddenly rolls off at bass end. This is a subtle little detail that can spoil an otherwise sound build, so it pays to design in a bit of headroom.

In most cases, real world audio engineering are about managing trade-offs and understanding phase shifts at the low end, and how those changes affect the overall mix while working within the limits of available equipment. You might have calculated a low enough cutoff point. However, the resulting phase change caused by filtering has slowed down the transient response of your instruments, causing sluggish bass guitar or less punchy drums. Rather than fixed rules, the included reference tables is a good place to start. You’ll want to take into account what your actual equipment puts out to the circuit.

So, what should you choose? In truth, picking the right coupling capacitor isn’t so much about remembering formulas as it is understanding the signal path. Each stage of your signal chain create an impedance profile that will affect the following stage. Considering component tolerance plus the resistance of both source and the load, you can assure that every step from input to output is true to your desired tone.

Instead of relying on guesses, you want your lows to rumble without being muddied by interference. Precision, not guesswork. If you make the effort to check these numbers, you’ll cease battling equipment limitations and begin confidently shaping your sound. Getting that high-pass corner exactly where you want it can make all the difference between a thin, nasal tone and a full, rich response.
