Allpass Delay Alignment Calculator for Audio

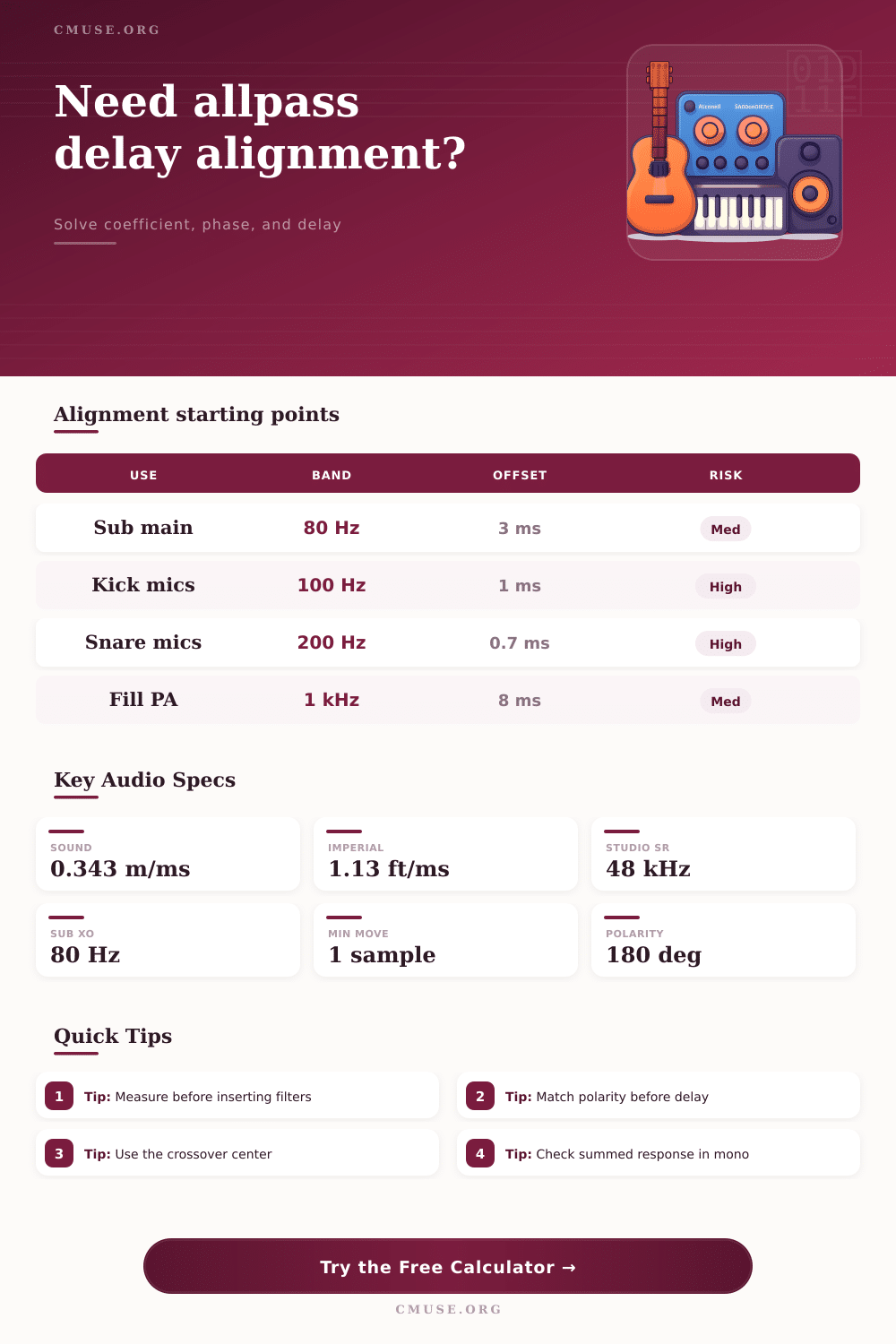

Allpass Delay Alignment Calculator

Estimate the delay offset between two audio paths, convert acoustic distance into time, and solve a first-order all-pass coefficient for frequency-focused alignment.

🎚 Alignment Presets

Load a realistic studio, live sound, or instrument-miking scenario. Each preset sets the measured offset, crossover or dominant frequency, sample rate, path distance, and all-pass stage count.

Timing, Frequency, And Filter Inputs
Converts distance and temperature labels.
Used to convert milliseconds to samples.
Usually the crossover or strongest shared band.
Positive means the reference path arrives later.
Positive means the reference path travels farther.
Temperature changes acoustic delay slightly.
More stages split the group delay target.
Use less than 100 when preserving tone matters.
Adds a phase warning to the result.
All-pass filters add group delay; they do not advance audio.
Used for recommendation wording.
Sets the residual delay warning threshold.

The coefficient solve uses a first-order digital all-pass form H(z) = (a + z^-1) / (1 + a z^-1). Group delay at the selected angular frequency is matched per stage when a stable coefficient is possible.

Total Offset To Treat
0.00 ms
0.0 samples
All-Pass Coefficient
a = 0.0000
stable first-order stage
Phase At Alignment Band
all-pass phase rotation
Residual Timing Error
0.00 ms
after selected correction

Formula Breakdown

📊 Audio Timing Spec Grid
0.343
Meters per millisecond at 20°C
1.126
Feet per millisecond at 68°F
20.83
Microseconds per sample at 48 kHz
12.5
Milliseconds per 80 Hz cycle
343
Millimeters per millisecond at room temp
48
Samples per millisecond at 48 kHz
180°
Polarity inversion phase equivalent
|a|<1
Stable first-order all-pass range
🎵 Audio And Instrument Alignment Grid
Source Pair Useful Band Typical Offset Alignment Focus All-Pass Caution
Subwoofer and main speakers60 to 120 Hz crossover2 to 8 msSummed crossover amplitude and impulse arrivalUse narrow evaluation around crossover, not full-band tone matching.
Kick drum inside and outside microphones60 to 150 Hz body plus click band0.5 to 2 msLow-end punch and polarity-compatible transient shapeA pure delay may be cleaner when both mics share the same source.
Snare top and bottom microphones150 to 250 Hz shell plus 2 to 6 kHz snap0.2 to 1.2 msPolarity, shell tone, and top/bottom comb filteringFlip polarity first; all-pass cannot replace wrong polarity.
Guitar amp microphone and DI reamp path90 Hz to 3 kHz0.3 to 4 msPick attack, cabinet resonance, and DI thicknessMultiple frequency bands may need listening checks after the solve.
Piano spot pair and room pair120 Hz to 2 kHz1 to 12 msImage stability without collapsing room depthPartial correction often sounds more natural than full correction.
PA fill speaker and main array500 Hz to 2 kHz speech clarity5 to 35 msArrival priority and intelligibility in the overlap zoneUse real acoustic measurement at listener position.
📐 Delay Conversion Reference
Reference At 44.1 kHz At 48 kHz At 96 kHz Acoustic Distance
1 sample0.0227 ms0.0208 ms0.0104 ms0.28 in / 7.1 mm at 68°F
0.5 ms22.1 samples24 samples48 samples0.56 ft / 0.17 m
1 ms44.1 samples48 samples96 samples1.13 ft / 0.34 m
5 ms220.5 samples240 samples480 samples5.63 ft / 1.72 m
10 ms441 samples480 samples960 samples11.26 ft / 3.43 m
First-Order All-Pass Design Ranges
Per-Stage Group Delay Coefficient Behavior Best Use Warning Sign
Below 0.25 sampleCoefficient often approaches a small phase trimFine transient nudging at higher frequenciesMay be too subtle to solve at very low frequency.
0.25 to 2 samplesUsually stable and easy to automateMic and crossover phase cleanupStill verify with polarity and magnitude response.
2 to 12 samplesCan require negative coefficients near low bandsSubwoofer or fill alignment around one bandCascade stages if one coefficient becomes extreme.
Above 12 samplesBetter handled by pure delay plus all-pass trimPA fills, distant room mics, large acoustic offsetsFull-band timing may smear if all-pass does all the work.
📋 Common Alignment Targets
Project Frequency Target Starting Delay Preferred Tool Check Result
Small studio sub integration80 Hz2 to 5 msDelay for distance, all-pass for crossover phaseSmooth summed response through crossover.
Drum close and overhead blend150 to 400 Hz1 to 4 msPartial delay or polarity-aware all-passSnare stays centered and low mids do not hollow out.
Guitar DI with cabinet microphone700 Hz to 2 kHz0.5 to 3 msSmall delay first, all-pass if tone shifts by bandPick transient gets thicker without nasal combing.
Side fill to main PA800 Hz to 1.6 kHz8 to 25 msPure delay plus small phase trimMain image remains dominant in overlap area.
Spot mic and room mic100 to 600 Hz5 to 20 msPartial correction onlyRoom depth remains musical while lows align better.
Measurement tip: Set polarity before trusting the all-pass number. A 180° polarity mistake can look like a delay problem but will not be repaired by coefficient tweaking alone.
Mix tip: If the calculated delay is large, use a normal delay line for most of the offset and reserve all-pass filtering for the crossover or tone-critical band.
Live sound tip: Calculate with the listener position that matters most. A fill speaker that aligns at the console may be wrong in the overlap zone.
Studio tip: For room microphones, try 50 to 80 percent correction first. Full alignment can remove the depth that made the room pair useful.

Your kick drum sounds like a hammer in isolation, but gets lost in mush when you bring up the overheads. You check levels…nothing seems amiss. You reach for EQ or maybe the panner. But probably it’s not about tonal balance. Time. Comb filtering caused by soundwaves arriving at mics at varying phases, dependent off distance, cuts out the low end before our ears catch onto the timing problem.

This can be solved with an allpass delay alignment calculator, separating phase shifts that change with frequency from pure time offset. They’re not interchangeable, and you need to know which one do what. Where things get tricky is that “regular” delay lines affect all frequencies the same amount, whereas all-pass filters merely shift phase and don’t alter magnitude response. That’s important when aligning an amp microphone to a DI feed, or matching up a subwoofer to the other main speaker. Delaying the second by just the measured difference may correct the timing of transients, but it can also create a hole in the phase response at the crossover frequency.

How to Fix Timing Problems in Your Mix

With that tool we’ve created above, you input the electrical offset or the acoustic path difference, then convert it to millisecond delay and number of delay samples. Then it spits out a reliable filter coefficient for you to use and removes any guesswork on how much delay to apply to which stage of the filter.

To begin: Measure how far apart your main and backup pickup spots are from original source. Each additional mic placement or each extra foot of cable means approximately one millisecond more time for audio to travel. This can be significant and create severe cancellation in the low end (bass) range. The device requests that specific amount of delay, as well as the air temperature, since temperature affects speed of sound. Warmer air will carry the sound faster, so there’s a bit of a change in delay.

It also requires knowing what frequency you’re concerned about, like a 2 kilometer snare snap, or an 80-hertz speaker crossover point. That way the calculator knows just how hard to work on that particular area instead of all over the place. It produces an all-pass filter that has a first-order output, using the coefficient you need to add the desired group delay at the target frequency.

The coefficient needs to be in the range from negative one to positive one; it has to be stable. When it reaches its limits and cannot handle the desired delay by itself, it will become unstable. In this case, you can use multiple stages (cascade) or abandon the all-pass filter and use a straight delay line. The calculator lets you know if the solution is getting close to the stability boundary.

It also shows you how much timing error remains once you apply whatever delay you’ve selected as a correction. In some cases you may not wish to align completely. For instance, leaving 20% of the offset intact keeps the natural sense of room depth. This adds a three-dimensional quality to recordings, making them sound more real rather than flat and fake.

Another silent killer is polarity. Delay or phase rotation won’t fix a flipped microphone or make the low end sit right. The ability to mark this polarity relationship on the tool means it’ll flag a possible problem in the results. Bottomline: Always check the polarity by summing to mono and listening for loss of bass prior to believing any coefficient.

When polarity’s sorted, then apply most of the required time offset via delay line, reserving the all-pass filter for phase fine tuning around the critical frequency. A hybrid approach give you the smooth sound of phase management along with the punch of transient alignment.

Similar issues arise with live sound, but over greater distances. Aligning a stage fill to the main array requires managing delays in the range of tens of milliseconds. Again, the arrival time is handled automatically by simple delay; it makes sure the direct sound reaches the ears first, followed by the delayed/reflected sound. An all-pass filter would of been too delicate for such a great gap. Only consider this if your timing mismatch is slight enough to cause some comb filtering within the vocal midrange. This should be a mismatch that cannot be resolved by moving the speakers physically.

The distance and sample rate conversion factors found in the reference tables on the page can serve as a handy reference when you’re troubleshooting without software/power. It isn’t about mathematically correct alignment. It’s about musical coherence. Sometimes perfect alignment can feel lifeless. This is especially true in ensemble recordings or those using room mics, which add some time variation to create space and width.

Using the calculator will lead you to the sweet spot, where the naturaly ambience is preserved but destructive interference is corrected. You dial back and forth on the percent of correction till the resulting sum has focus and fullness while still maintaining the air surrounding the instruments. It is a balancing act between perception and physics.

Afterward, use these coefficients and delay times as presets for later sessions with comparable acoustics. Consistent alignment methods minimize trial and error in the mixdown. You will spend more time crafting tone and less time chasing elusive low end. Your confidence in interpreting the numbers into audio grows with experience.

Believe your ears more than the display. However, the calculator does the grunt work of turning frequency and distance into adjustable filter values. Begin with the measurements. Apply them lightly and then wait to hear the bass come back. That’s how you take a muddy mix and convert it into a solid foundation.
